Brand Name : Radartone
Model Number : LT-RFS50
Place of Origin : China
MOQ : 1set
Payment Terms : T/T
Price : Negotiable
Supply Ability : 50set/3month
Delivery Time : 2 month
Detection Frequency Range : 200MHz-6000MHz,Focus Bands: 0.4、0.9、1.4、2.4、5.2、5.8GHz
Detection Method : Passive Radio Auto-detection, Passive Signal Reception
Detection Distance : 5-10km(Range Varies by Model, UAV Transmit Power >0.1W)
Detection Range : Omnidirectional Detection
Number of Target Detections : Simultaneous detection of over 60 UAVs
Accuracy : Direction Finding Accuracy:≤3°,Multi-station positioning accuracy:≤5%
LT-RFS50 UAV Detection and Direction Finding Equipment
Product Introduction:
At present, many UAV interference events occur frequently, and the problem of UAV control in key areas is particularly prominent. This product uses high-performance wireless reconnaissance equipment to lock the UAVs remote control signals and image transmission signals, and carry out detection, tracking and positioning as well as trajectory display of the UAV, so it can achieve all-weather, no blind zone and long-distance to the illegal invasion of UAVs to carry out automatic search and detection, direction finding, and tracking and positioning to meet the security needs of key areas. It can meet the security needs of key areas.
Product Features:
1, The system detects UAVs at effective ranges, both near and far.
2, With UAV and operator tracking capabilities to suit a variety of application environments.
3, Supports both stand-alone and networked (intersection positioning) modes of operation, providing excellent scalability.
4, Supports black and white list recognition for UAVs.
5, Provide expansion interfaces to facilitate connection with interference countermeasure equipment or system platforms.
| Parameter Name | Parameter Value |
| Detection Frequency Range | 200MHz-6000MHz |
| Focus Bands: 0.4,0.9,1.4,2.4,5.2,5.8GHz | |
| Detection Method | Passive Radio Auto-detection, Passive Signal Reception |
| Detection Distance | 5-10km(Range Varies by Model, UAV Transmit Power >0.1W) |
| Detection Range | Omnidirectional Detection |
| Number of Target Detections | Simultaneous detection of over 60 UAVs |
| Accuracy | Direction Finding Accuracy≤3° |
| Multi-station positioning accuracy≤5% | |
| Detection Success Rate | ≥:98% |
| Detection Response Time | ≤:3s |
| Size | 450mm*400mm |
| Weight | ≤10kg |
| Ingress Protection | IP67 |
| Usage | Supports Stand-alone and Networked (Intersection Positioning) Operation Modes |



|
|

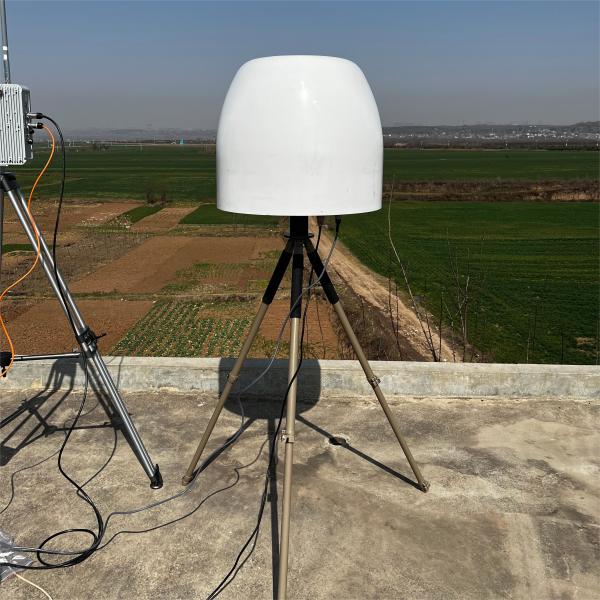

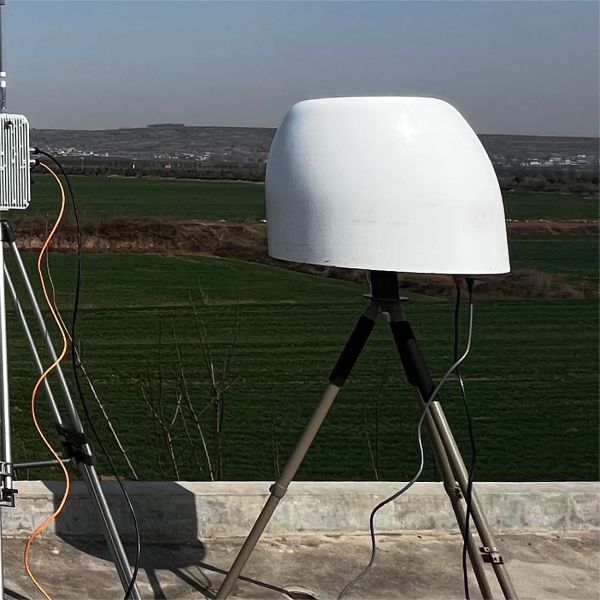

LT-RFS50 UAV Detection And Direction Finding Equipment Wireless Reconnaissance Images |
